Buying a Perkins 4.236 Overhaul Kit: A Mechanic's Checklist Before You Order

If you are buying a Perkins 4.236 overhaul kit, confirm the engine model, serial number, bore condition, and kit contents before you order. The Perkins 4.236 is a durable 4-cylinder diesel, but the correct rebuild kit depends on the exact engine and the condition of the block. Arko Tractor Parts carries the Perkins 4.236 overhaul kit and ships nationwide from California.

Why the Perkins 4.236 Still Gets Rebuilt

The Perkins 4.236 is one of the best-known four-cylinder Perkins diesel engines. It appears across agricultural, industrial, and construction equipment, especially older Massey Ferguson and industrial applications. The engine earned its reputation because it is simple, mechanical, and rebuildable.

Many of these engines have already lived a long working life. Some have been rebuilt once before. Some have been machined oversize. A tractor model can point you in the right direction, but it is not enough to guarantee the correct overhaul kit. Start with the engine itself, then match the kit.

Mechanic's Checklist Before Ordering

1. Confirm the Engine Data Plate

Read the engine data plate before buying. The plate shows the model and serial number — usually mounted on the side of the block or near the fuel injection pump. Do not rely on the tractor hood, loader model, or what the previous owner told you. These machines are old enough that engine swaps and partial rebuilds are common.

2. Check Whether the Engine Has Been Rebuilt Before

A previous rebuild changes the decision process. If the cylinder bores were machined or the block was sleeved differently, standard-size components may not be correct. Look for clues:

• Paint marks or rebuild tags on the block
• Non-original gasket edges or sealant
• Service records showing prior machining
• Oversize markings on old pistons
• Cylinder wall wear beyond standard limits

3. Inspect Bore Condition

A Perkins 4.236 with heavy cylinder wear, scoring, taper, or out-of-round bores may need machine work before assembly. Check bore diameter, taper, out-of-round wear, scoring or pitting, and ridge at the top of cylinder travel. If the block is worn beyond spec, installing new rings alone will not solve compression loss or oil burning.

4. Match the Kit Contents to the Job

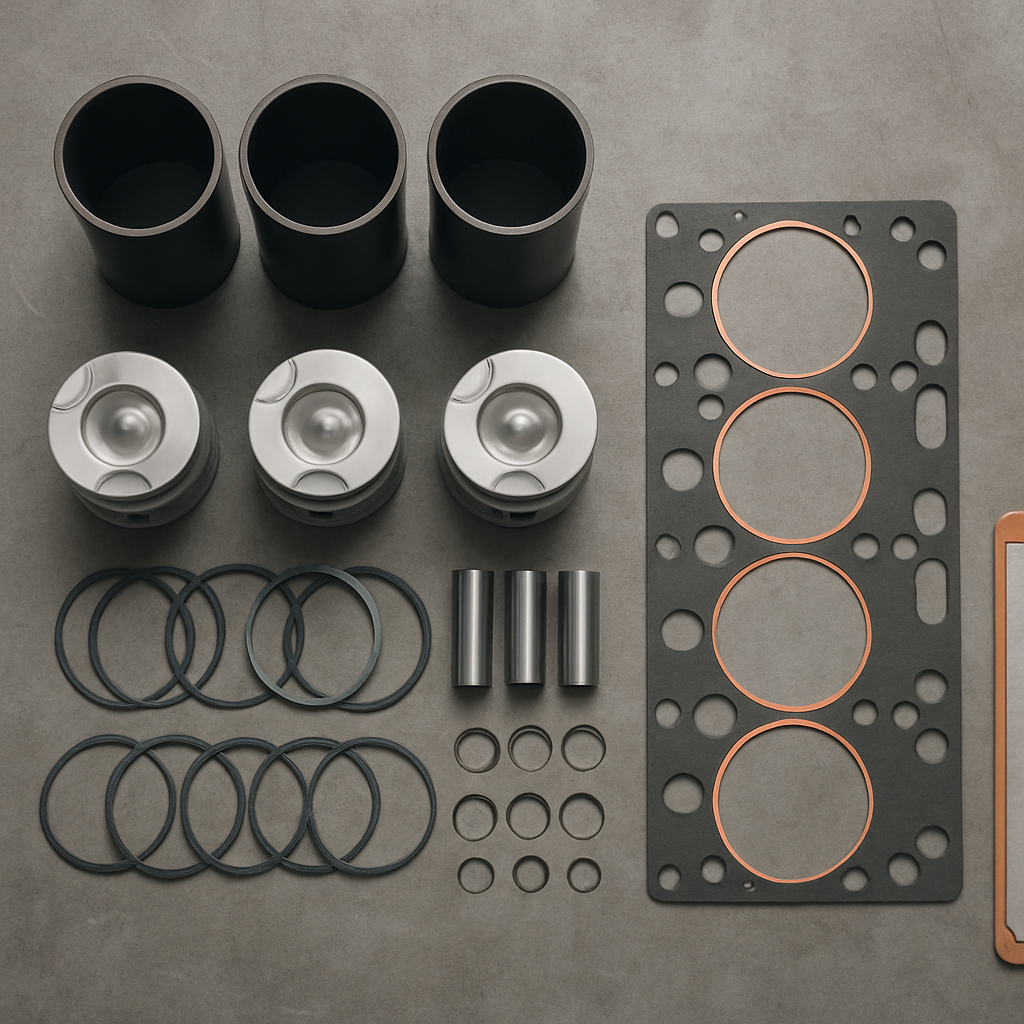

A complete Perkins 4.236 rebuild usually involves pistons, piston rings, cylinder liners or sleeves, thrust washers, a full gasket set, and front/rear seals. Main bearings and rod bearings are sold separately because bearing size depends on crankshaft condition.

View the Perkins 4.236 Overhaul Kit  |  Browse all Perkins Kits

5. Inspect the Crankshaft Before Final Ordering

If the crank has already been ground undersize, standard bearings may not fit. Before assembly, check main journal size, rod journal size, scoring or heat marks, thrust surface wear, and evidence of previous grinding.

6. Decide Whether the Head Needs Work

A good bottom-end rebuild can still fail if the cylinder head is ignored. Common signs the head needs attention: white smoke paired with coolant loss, compression leakage between cylinders, overheating history, oil/coolant mixing, and visible pitting around coolant passages.

Perkins 4.236 vs Perkins 4.203: Confirm the Engine

The Perkins 4.236 and Perkins 4.203 are both 4-cylinder Perkins diesel engines but they are not the same engine, and their overhaul kits are not interchangeable. The engine data plate is the source of truth.

Related: Perkins 4.203 Engine Overhaul Kit

Aftermarket vs OEM for the Perkins 4.236

For many working tractors and industrial machines, a quality aftermarket Perkins 4.236 overhaul kit is the practical choice. OEM parts can be expensive and slower to source. The key is correct fitment and a supplier that understands Perkins engines — not the logo on the box.

Final Ordering Checklist

• Engine model reads Perkins 4.236
• Serial number is recorded
• Bore size and condition are checked
• Crankshaft journal sizes are known
• Kit contents match the rebuild scope
• Cylinder head inspection is planned
• Gasket set coverage is confirmed

Frequently Asked Questions

What equipment uses the Perkins 4.236 engine?

The Perkins 4.236 was used in agricultural, industrial, and construction equipment including many older Massey Ferguson machines. Identify the engine by data plate rather than equipment model alone.

Is the Perkins 4.236 the same as the Perkins 4.203?

No. They are different engine models and use different overhaul kits. Confirm the engine data plate before ordering.

Should I order a standard-size kit?

Only if the engine measurements support it. If the engine has been rebuilt or machined before, standard-size parts may not be correct. Check bore and crankshaft dimensions first.

What is usually included in a Perkins 4.236 overhaul kit?

Pistons, rings, liners or sleeves where applicable, thrust washers, and a gasket set. Main bearings and rod bearings are sold separately. Always confirm exact contents before ordering.

Can I rebuild without machine work?

Sometimes, but only if block, bores, crankshaft, and head are within usable limits. If there is taper, scoring, or head warpage, machine work may be required.

Where can I buy a Perkins 4.236 overhaul kit?

Arko Tractor Parts carries the Perkins 4.236 overhaul kit. Browse the full Perkins collection.
